Booth 2341

March 6-8  |  Indiana Convention Center

March 6-8

Indiana Convention Center

brought to you by ASA Electronics®

See us and experience the latest in commercial vehicle safety at the Ride-N-Drive.

Voyager

Observation Equipment

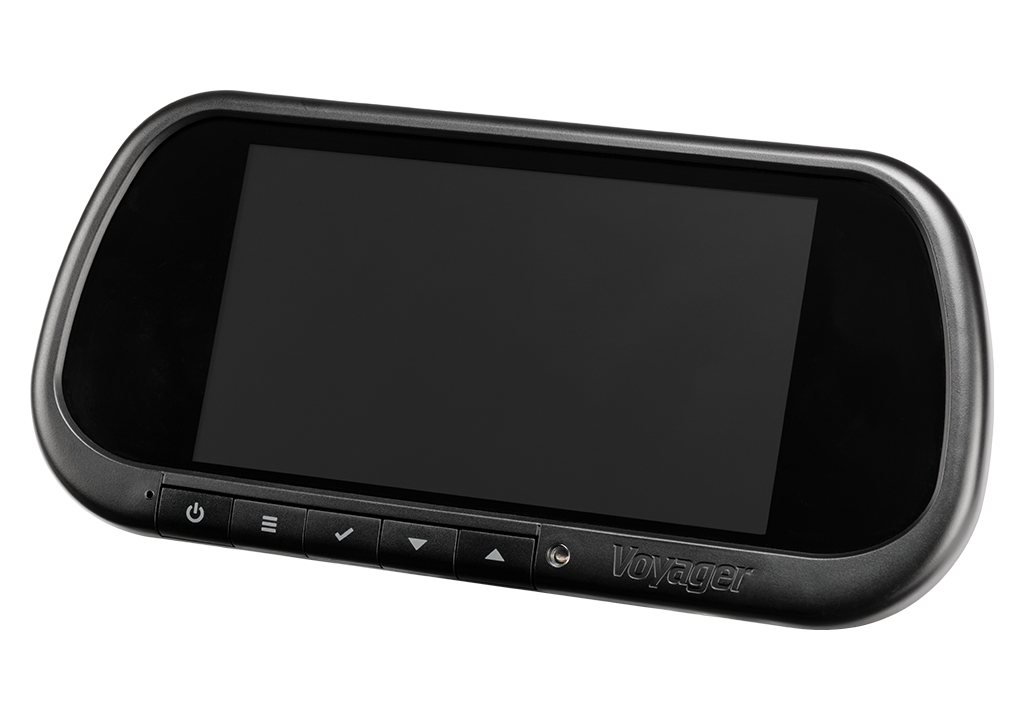

Replacement Rearview Mirror Monitor

VOM74MM

Welcome a clear view of your surroundings where traditional rearview capabilities might be absent, ensuring confident maneuvering and minimizing blind spots.

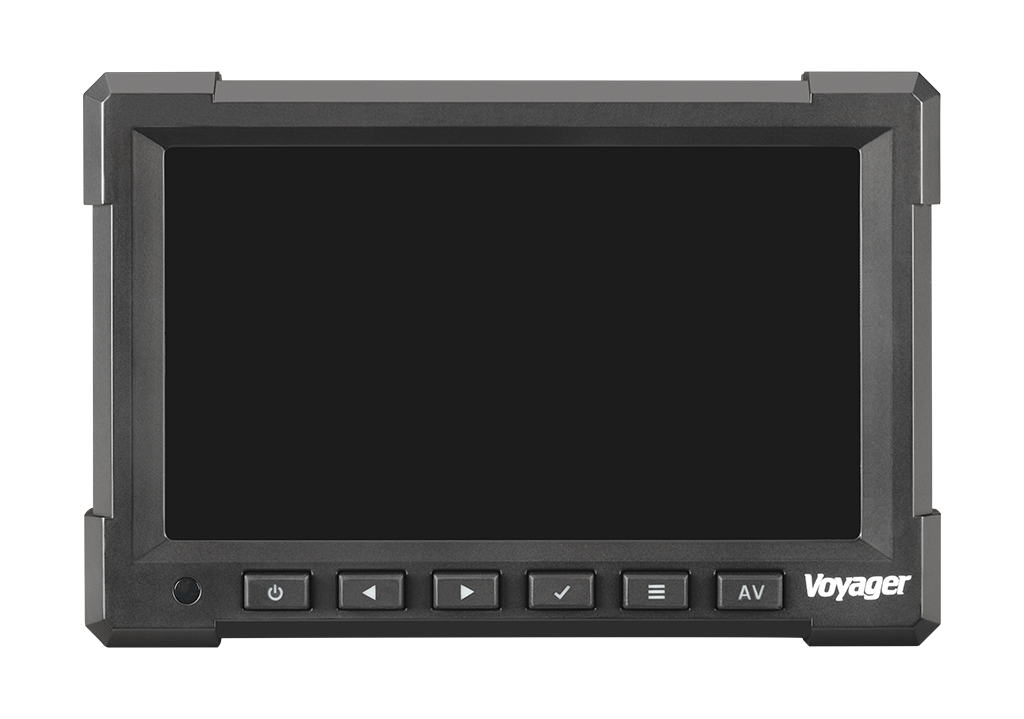

Observation 7" Monitor

VOM718

Experience heightened efficiency and safety on the road with our 7-inch LCD monitor, boasting a wide-view panel, three versatile camera inputs, compatibility with both NTSC and PAL video signals, and the flexibility of multiple mounting options.

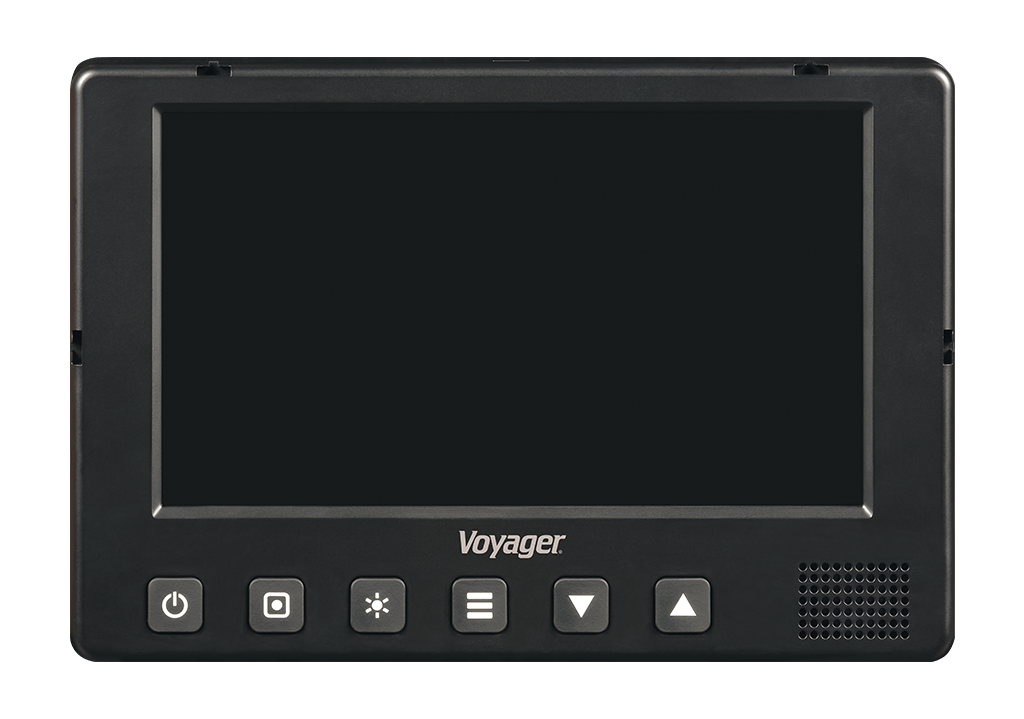

Heavy Duty QuadView 7" Monitor

VOM719WP

Boost safety and efficiency with our rugged 7-inch QuadView monitor, offering a waterproof design, a 7″ LCD panel, and versatile display options with four camera inputs and six triggers for comprehensive monitoring in any commercial application.

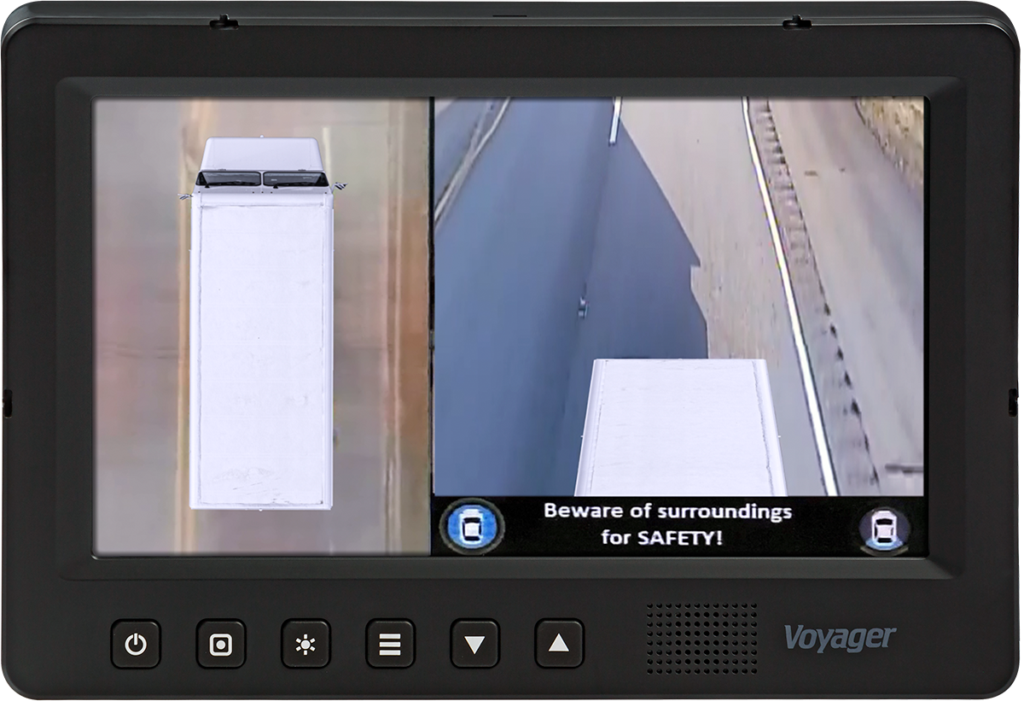

10" Monitor

VOM1023

Watch your surroundings 24/7 with our 10-inch heavy-duty monitor, built for rugged trips with 4G vibration resistance. Choose between single, split, and quad display modes in vibrant colors with adjustable viewing options.

AHD Color Camera (white or black)

VCAHD150 / VCAHD150B

Enhance safety with our fixed mount side or backup camera, featuring durable aluminum housing, black and white options, IP69K waterproof rating, and low light assistance for reliable performance in various conditions.

Two-in-One: Light Bar and Camera

VCAHD140LB2

Equipped with IR low light assist, a microphone, surface mount convenience, and corrosion resistance, our rear light bar and camera combo make for a cohesive combination of visibility and security.

Color CMOS Camera (white or black)

VCMS24 / VCMS24B

Ensure top-notch performance with this u-bracket mounting camera featuring a black powder-coated aluminum housing, low light assistance, a built-in microphone, an IP69K waterproof rating, and a corrosion-resistant design for reliable operation in any condition.

JENSEN Heavy Duty

Audio Equipment

Bluetooth® Stereo

JHD12

Audio entertainment is best delivered through our Bluetooth stereo, ensuring standard effortless connectivity. Toggle between day and night displays, customize audio settings and benefit from a daylight-readable segmented LCD for an intuitive experience.

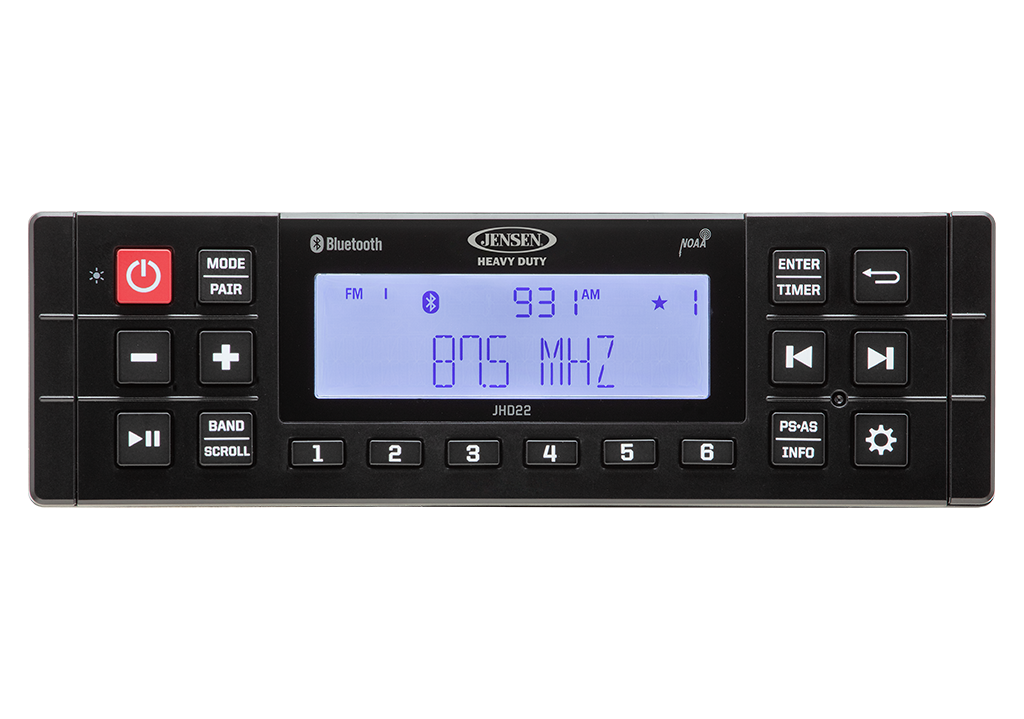

Bluetooth® and Weatherband Stereo

JHD22

Combining functionality with convenience, this Bluetooth and Weatherband stereo offers features like Bluetooth streaming, a rear USB port for device charging, and an AM/FM tuner with 30 presets. Its water and UV-resistant front panel ensures durability, making it a versatile companion.

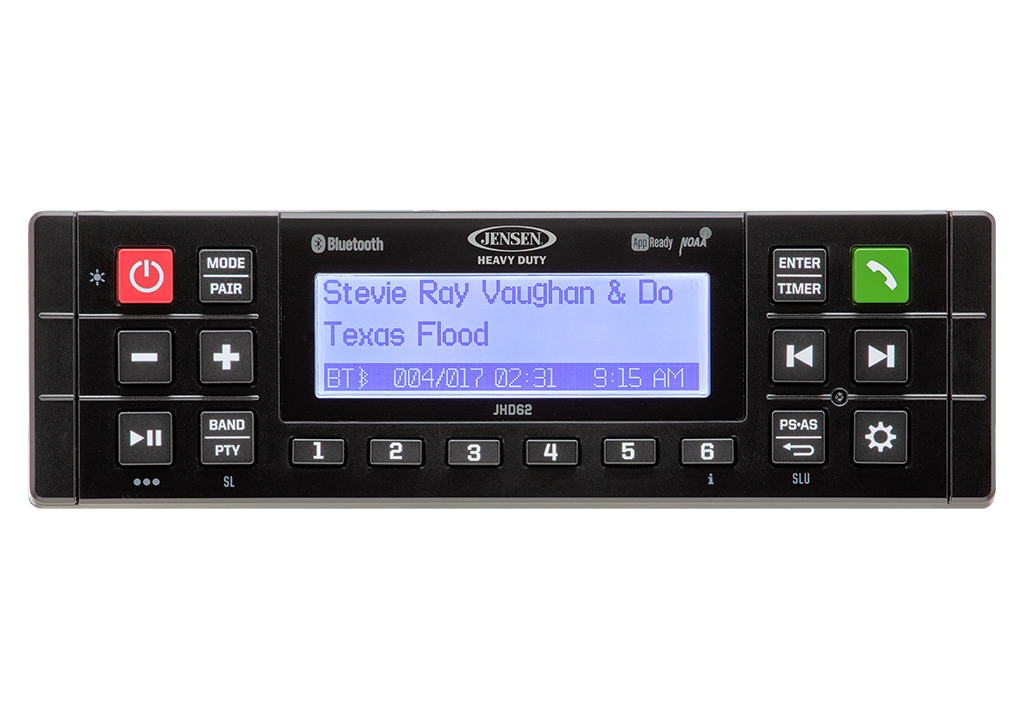

Bluetooth® Stereo with DAB+

JHD62

Ensure durability and stellar performance with our rugged Bluetooth and DAB+ equipped stereo, offering hands-free-calling and crystal-clear digital broadcasting. The J1939 CAN Bus capability enhances connectivity, making it the ultimate choice for a modern, feature-rich driving audio solution.

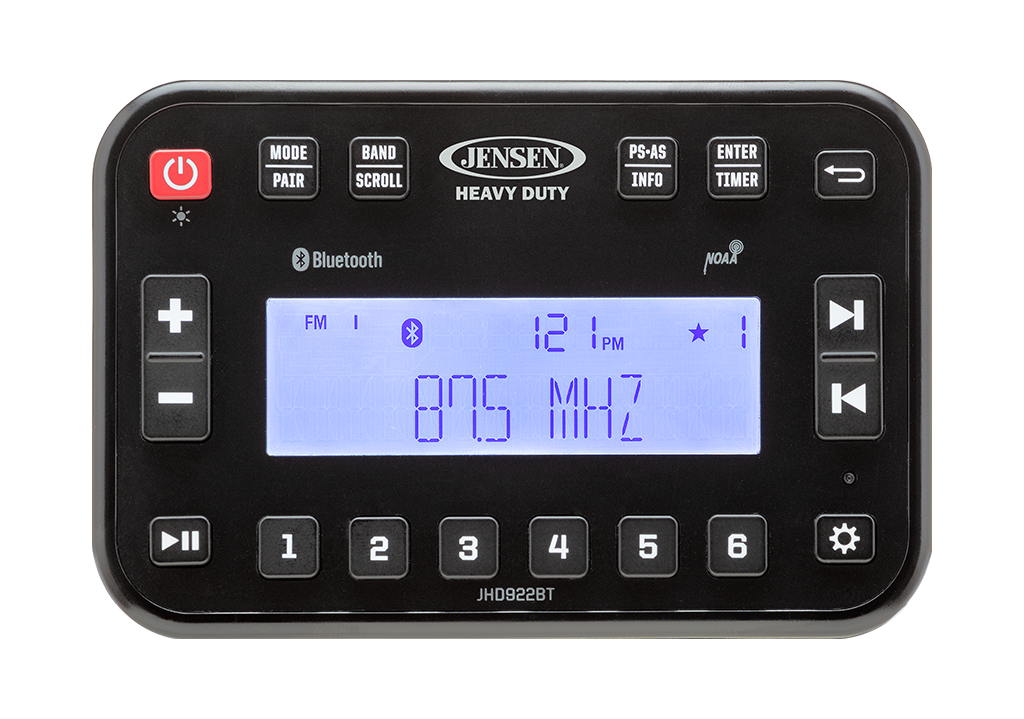

Mini Bluetooth® Stereo

JHD922BT

Outfitted with Bluetooth steaming, Weatherband, and 30 AM/FM tuner presets, this mini stereo delivers the same wattage as its counterparts while maintaining a discreet profile – unless, of course, it’s filling the vehicle with music.

Mini Stereo with DAB+

JHD962BT

Enhance the long drives ahead with our mighty mini stereo equipped with Bluetooth and DAB+, offering hands-free-calling and crystal-clear digital broadcasting. Other features like the rear USB port for device charging make it an easy choice for a compact audio solution.

Complementary Equipment

Other Complementary Products

VCAHD142RWT and VCAHD142LWT side-body cameras.

Product Name

VCAHD142RWT / VCAHD142LWT

Outfit your vehicles with our high-definition cameras, delivering top-notch performance with advanced color optics, IR low-light assist for clear visibility, and resistance to the elements with impressive water and corrosion resistance.

Rear Four-Sensor System

CVPS192

Upgrade vehicle safety with our Rear Four-Sensor System. Engineered for the long road ahead, the four bumper/body mount sensors deliver comprehensive alerts and proximity warnings through monitor speakers and on-screen display overlays.

Digital Wireless Transmitter

WVTX2AP

Utilizing proprietary WiSight 2.0 Technology with auto-pairing, our Wireless Transmitter offers seamless integration and long-distance transmit/receiving capability. Housed in an aluminum waterproof enclosure and supporting up to 4 WiSight 2.0 wireless cameras, it is a reliable and durable choice for wireless camera systems.

*Best paired with the WVRX2AP Receiver and the WVSXM70 Monitor.

Digital Wireless Receiver

WVRX2AP

Unlock the future of wireless observation with our Digital Wireless Receiver. Powered by WiSight 2.0 Technology, it boasts seamless integration with auto pairing and long-distance transmit/receiving capability. It is a reliable and durable choice for wireless camera systems, supporting up to 4 WiSight 2.0 wireless cameras and housed in a robust metal casing.

*Best paired with the WVTX2AP Transmitter and the WVSXM70 Monitor.

Digital Wireless 7" Monitor

WVSXM70

Designed for seamless integration, our robust Wireless 7″ Display Monitor offers auto-pairing capability, supports up to four wireless cameras, and transmits/receives signal through and around objects up to 60 feet away, ensuring reliable coverage. Packed with features like a customized display, a built-in speaker, a suction cup mount, and a 12V DC plug, this monitor delivers above and beyond for the journey ahead.

*Best paired with the WVTX2AP Transmitter and the WVRX2AP Receiver.

Get in Touch

Jaren Weldy

National Accounts
Manager

Dave Gordon

National Accounts
Manager

Joe Camacho

Vice President
Commercial Divisions

Get in Touch

Jaren Weldy

National Accounts
Manager

Dave Gordon

National Accounts
Manager

Joe Camacho

Vice President
Commercial Divisions

stay up to date

Sign up to receive the latest updates from Voyager.

© Copyright Voyager. All Rights Reserved. | Privacy Policy

VOM74MM

  • Supports 3 cameras with manual or triggered source selection
  • Rearview mirror replacement monitor
  • 7-inch wide format color TFT LCD display
  • On-Screen Display (OSD) for AV source, picture adjustment, and volume control
  • Manual and auto-dimming feature with screen saver mode
  • Mechanical buttons with white backlit illumination
  • Non-volatile memory
  • Built-in speaker
  • 12 volt DC power
  • NTSC and PAL video signal compatible
  • 800 W x 450 H screen resolution
  • 70° top, 50° bottom, 70° left, 70° right viewing angles
  • 400 nit brightness
  • 500:1 contrast ratio
  • Analog 16:9 aspect ratio

VOM718

  • Supports three wired cameras with manual (push button) or automatic (trigger) source selection
  • 7-inch wide format color LCD panel display with white LED backlight
  • On-Screen Display (OSD) for AV source, picture adjustment, and volume control
  • Day/night brightness modes
  • Rubber keypad with white backlit illumination
  • Auto-power on (stand by)
  • Non-volatile memory
  • Multiple mounting options (AMPS) compatible
  • Built-in speaker
  • Removable sun visor included
  • 12 volt DC power
  • NTSC and PAL video signal compatible
  • 480 W x 234 H screen resolution
  • 55° top, 65° bottom, 70° left, 70° right viewing angles
  • 450 nit brightness
  • 400:1 contrast ratio
  • Analog 16:9 aspect ratio

VOM719WP

  • Supports 4 cameras with 6 triggers including Single image, Split-screen, and QuadView display modes
  • 7-inch digital wide format color TFT LCD display
  • DC auto source for switching triggers (turn signal compatible)
  • Manual day/night display brightness controls
  • Backlit control buttons
  • Heady duty waterproof construction
  • Rated and tested to withstand 4G continuous vibration
  • AMPS mounting provisions
  • Built-in speaker
  • Removable sun visor included
  • 12 volt DC power
  • NTSC and PAL video signal compatible
  • 800 W x 450 H screen resolution
  • 60° top, 70° bottom, 75° left, 75° right viewing angles
  • 500 nit brightness
  • 500:1 contrast ratio
  • 16:9 aspect ratio

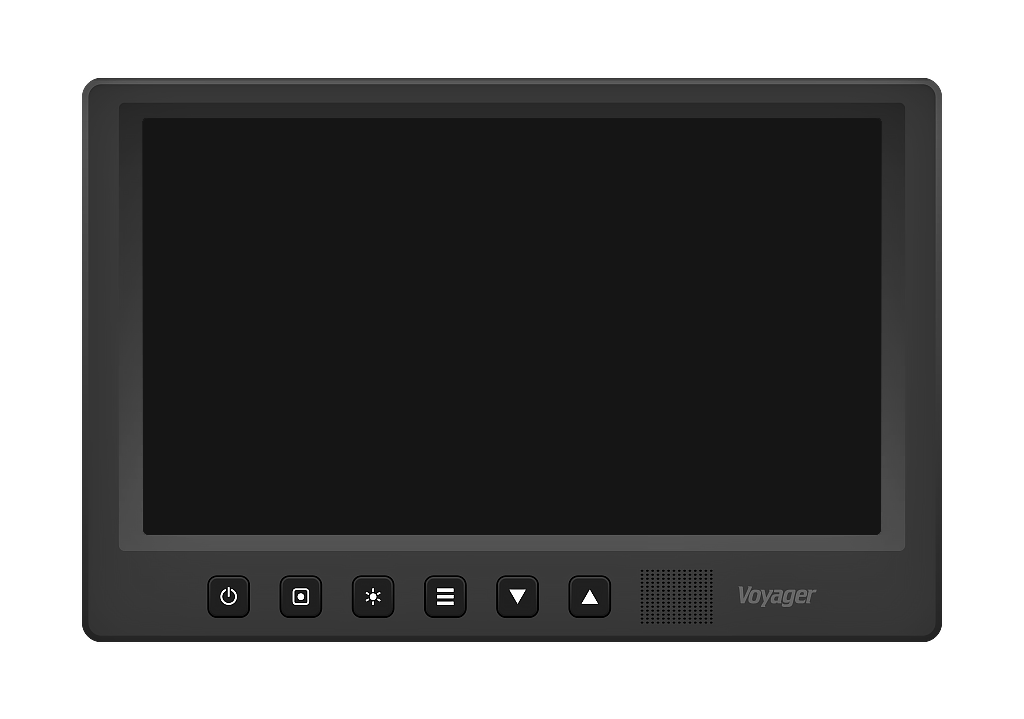

VOM1023

Product Features

  • Heavy Duty Observation Monitor
  • 10″ Digital wide format color TFT LCD panel
  • Single / Split / Quad display modes
  • Supports NTSC / AHD video signal
  • DC auto source for switching triggers (turn signal compatible)
  • Picture image adjustable for Mirror, Normal, Up, and Down viewing.
  • Backlit control buttons
  • Built-in audio speaker
  • Four (4) camera inputs & 6 triggers
  • CE, FCC, e-Mark certified
  • Rated and tested to withstand 4G continuous vibration
  • AMPS mounting provisions
  • Manual Day/Night display brightness control
  • IPX6 Waterproof rating

Technical Features

  • Audio Output: 0.5W
  • Power Supply: 12V
  • Contrast: 400:1
  • Brightness: 300 cd/m2
  • Viewing Angle: 15 (up), 35 (down), 45 (side)
  • Operating Temperature: -30°C to 75°C
  • Storage Temperature: -40°C to 85°C

VCAHD150 / VCAHD150B

  • High-performance color optics
  • White powder-coated aluminum housing
  • 1/3-inch CMOS sensor
  • Electronics automatic iris
  • Mirror image orientation
  • 6 LEDs for IR low light assistance
  • Built-in microphone
  • Surface mount installation
  • Compact size
  • IP69K waterproof rating

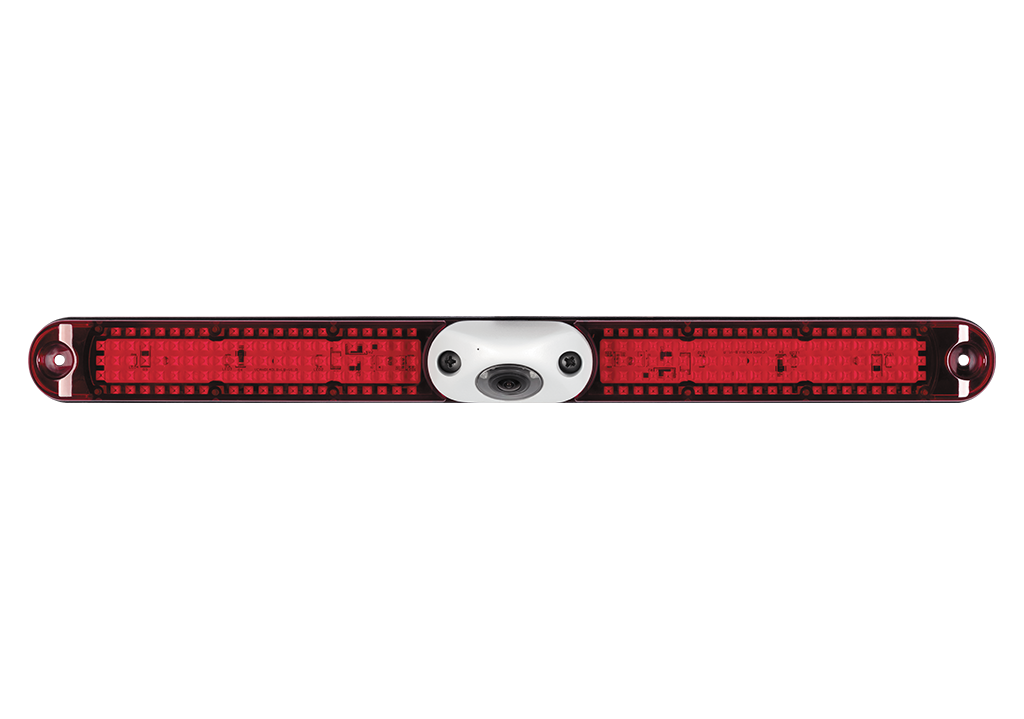

VCAHD140LB2

  • Single pass wire entry
  • IP68 waterproof rating
  • Automotive exterior lighting grade polycarbonate
  • FMVSS108 Compliant
  • High-performance color optics
  • IR low light assist
  • Microphone
  • Surface mount
  • CMOS technology
  • Corrosion Resistant (ASTM B117)
  • Overall dimensions: 15.6″ W x 1.4″ H x 2.2″ D

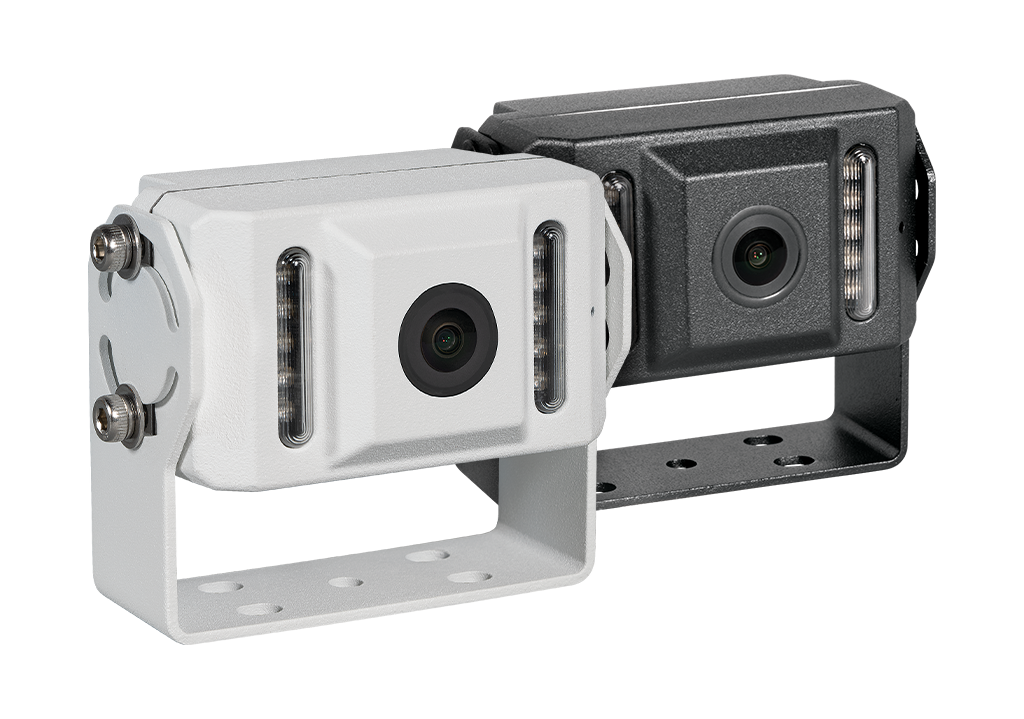

VCMS24 / VCMS24B

  • High-performance color optics
  • Black powder-coated aluminum housing
  • 1/4-inch CMOS sensor
  • Electronic automatic iris
  • User-selectable normal/mirror image orientation via switch
  • 10 LEDs for IR low light assistance
  • Built-in microphone
  • IP69K waterproof rating
  • Corrosion Resistant (ASTM-B117)

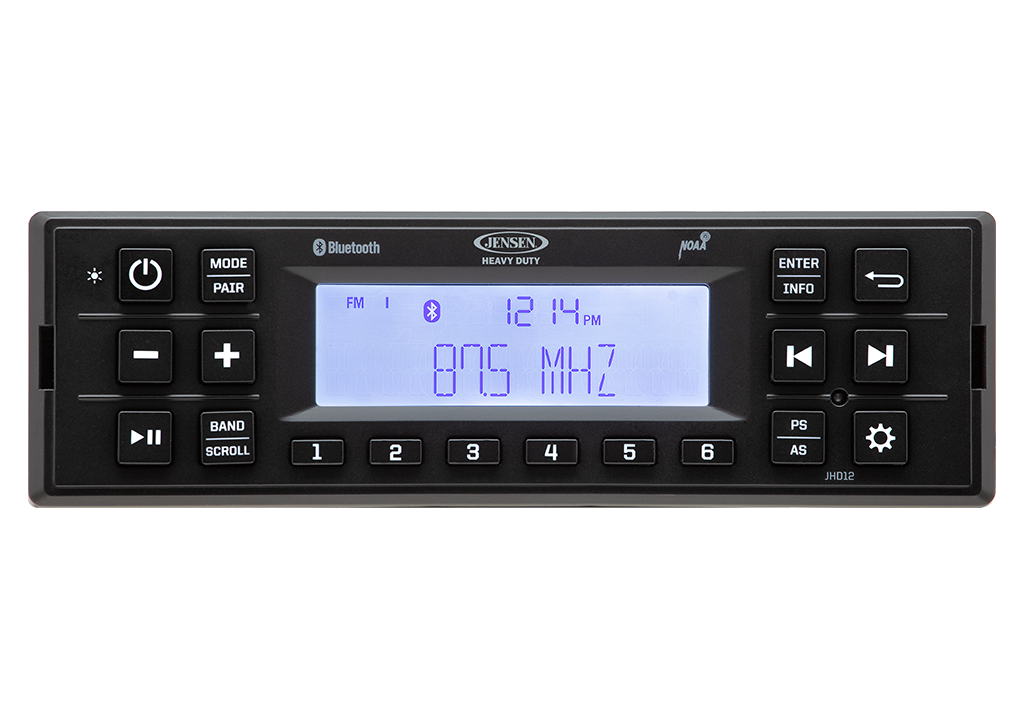

JHD12

  • 180 watts max power (45W x 4); 100 watts RMS (25W x 4)
  • Bluetooth® streaming audio (A2DP/AVRCP)
  • Weatherband
  • AM/FM tuner with 30 presets
  • Audio settings (volume/bass/treble/balance/fade)
  • Toggle switch between day and night display
  • Daylight-readable, segmented LCD
  • Two-wire power with non-volatile memory and clock support
  • Low battery alert
  • Work timer

JHD22

  • 180 watts max power (45W x 4); 100 watts RMS (25W x 4)
  • Bluetooth® streaming audio (A2DP/AVRCP)
  • Water and UV-resistant front panel (IPX5)
  • Weatherband
  • AM/FM tuner with 30 presets
  • Rear USB port for device charging (one amp output)
  • Stereo pre-amp line-level output (2V RMS)
  • Amplifier remote trigger (12VDC)
  • PA microphone input
  • Audio settings (volume/bass/treble/balance/fade)
  • Toggle switch between day and night display
  • Daylight-readable, segmented LCD
  • Two-wire power with non-volatile memory and clock support
  • Low battery alert
  • Work timer

JHD62

  • 180 watts max power (45W x 4); 100 watts RMS (25W x 4)
  • Bluetooth® streaming audio (A2DP/AVRCP) and hands-free calling (HFP) – Compatible with JMICHFP and JMICHFP2 microphones (sold separately)
  • Water and UV-resistant front panel (IPX6)
  • App control ready
  • DAB+ (Digital Audio Broadcasting)
  • Weatherband
  • AM/FM tuner with 30 presets
  • RBDS (Radio Broadcast Data Service) with PTY search
  • Rear USB port for device charging (1 amp output)
  • Stereo pre-amp line level output (2V RMS)
  • Amplifier remote trigger (12VDC)
  • Toggle switch between day and night display
  • Full dot matrix LCD
  • Two-wire power with non-volatile memory and clock support
  • Remote turn on
  • Low battery alert
  • Work timer
  • J1939 CAN Bus capability

* Requires customer-specific interface.

JHD922BT

  • 180 watts max power (45W x 4); 100 watts RMS (25W x 4)
  • Bluetooth® streaming audio (A2DP/AVRCP)
  • Weatherband
  • AM/FM tuner with 30 presets
  • Audio settings (volume/bass/treble/balance/fade)
  • Toggle switch between day and night display
  • Daylight-readable, segmented LCD
  • Two-wire power with non-volatile memory and clock support
  • Low battery alert
  • Work timer

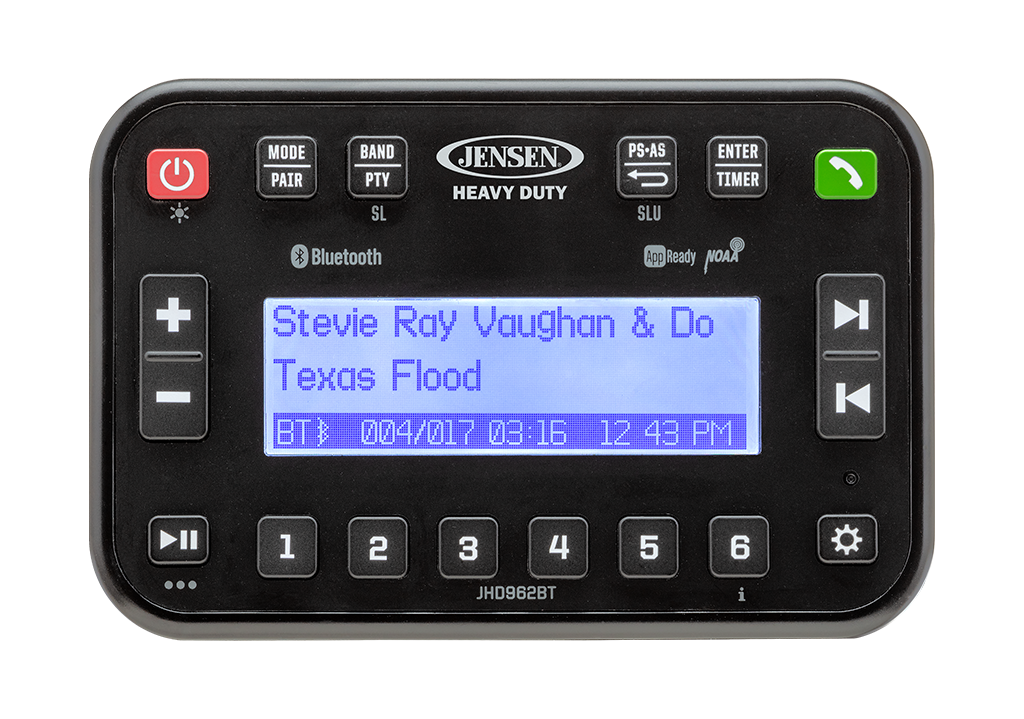

JHD962BT

  • 50 watts max power (25W x 2); 20 watts RMS (10W x 2)
  • Bluetooth® streaming audio (A2DP/AVRCP) and hands-free calling (HFP) – compatible with JMICHFP and JMICHFP2 microphones (sold separately)
  • Water and UV-resistant front panel (IPX6)
  • App control ready
  • DAB+ (Digital Audio Broadcasting)
  • Weatherband
  • AM/FM tuner with 30 presets
  • RBDS (Radio Broadcast Data Service) with PTY search
  • Rear USB port for device charging (1 amp output)
  • Stereo pre-amp line level output (2V RMS)
  • Amplifier remote trigger (12VDC)
  • Toggle switch between day and night display
  • Full dot matrix LCD
  • Two-wire power with non-volatile memory and clock support
  • Remote turn on
  • Low battery alert
  • Work timer

VCAHD142RWT / VCAHD142LWT

  • High-performance color optics
  • CMOS technology
  • Waterproof (IP69K)
  • IR low-light assist
  • Corrosion resistant (ASTM-B117)

CVPS192

  • Proximity detection/warning system with four bumper/body mount sensors
  • Seamlessly integrates into any Voyager rear camera system
  • Easy-to-read, on-screen display overlays that do not obstruct camera view
  • Audio fed through monitor speaker
  • Engineered for commercial vehicle environments
  • Compatible with JENSEN® touchscreen stereo (with camera input)
  • Compatible cameras: VCAHD140i, VCMS20, VCMS20B, VCMS17, VCMS17B

WVTX2AP

  • Proprietary WiSight 2.0 Technology with Auto-Pairing
  • Long-distance transmit/receiving capability
  • Supports up to 4 WiSight 2.0 wireless cameras with select button and triggers
  • GPIO accessory inputs and outputs
  • LED indicator lights
  • Aluminum waterproof enclosure with plastic protective housing

*Not compatible with first generation WiSight Technology products.

WVRX2AP

  • Proprietary WiSight 2.0 Technology with Auto-Pairing
  • Long-distance transmit/receiving capability
  • Supports up to 4 WiSight 2.0 wireless cameras with select button and triggers
  • GPIO accessory inputs and outputs
  • LED indicator lights
  • Metal housing with AMPS mounting pattern

*Not compatible with first generation WiSight Technology products.

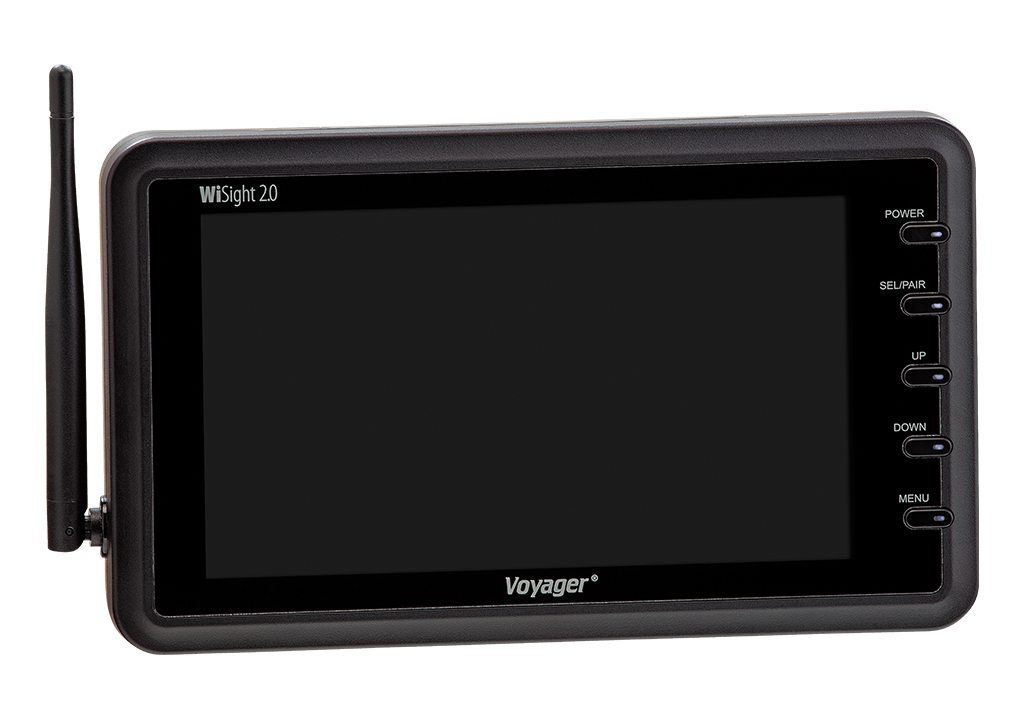

WVSXM70

  • 7-inch display
  • Supports up to four wireless cameras simultaneously (WVSXC150 or WVSXC160)*
  • Auto-pairing capability allows monitor to be paired with any of the wireless cameras with the touch of a button
  • Strong signal transmits through and around objects up to 60 feet away
  • Supports normal and mirrored camera image
  • Supports Single, Split, and Quadview viewing options
  • Built-in speaker
  • Suction cup mount and 12V DC plug included

*Not compatible with first-generation WiSight Technology cameras.

VBSD32

  • Blind spot detection system
  • Two side-body mount sensors
  • Radar based waterproof sensors
  • Provides warning lights while sensor detects vehicle in blind zone with audible beep warning while turn signal is activated
  • 1T2R antenna technology detects the vehicle in blind zone from both directions (vehicle approaching or passing the target vehicle)
  • Self diagnostic mode
  • Rear Cross Traffic Alert (RCTA) System – the sensors monitor the target object in the monitored area. System will give out a beep alert for potential risk while vehicle is in reverse mode

CVPS18

  • Proximity detection/warning system with four bumper/body-mount sensors
  • Four detection zones with progressive beep tone
  • Audio speaker/buzzer with High/Low/Off volume settings
  • Plastic bumper installation
  • Built-in sensor isolators for metal bumper application
  • Sensor sensitivity adjustment with rear step avoidance option
  • No calibration, no on-screen display

CVPS192

  • Proximity detection/warning system with four bumper/body mount sensors
  • Seamlessly integrates into any Voyager rear camera system
  • Easy-to-read, on-screen display overlays that do not obstruct camera view
  • Audio fed through monitor speaker
  • Engineered for commercial vehicle environments
  • Compatible with JENSEN® touchscreen stereo (with camera input)
  • Compatible cameras: VCAHD140i, VCMS20, VCMS20B, VCMS17, VCMS17B

WVOS541

Wireless camera system includes one WVOM541AP monitor, one WVCMS130AP rear camera, one suction cup monitor mount, and 12 volt DC accessory plug.

Monitor Features
  • Supports up to 4 wireless cameras
  • Auto-Pairing button instantly pairs (up to) 4 wireless cameras
  • WiSight digital signal transmits through and around objects up to 60 feet away
  • 5.6-inch color TFT LCD panel display with LED backlight
  • Built-in speaker
  • Suction cup mount and 12 volt DC plug included
  • 12 volt DC power
  • NTSC video signal compatible
  • 960 W x 234 H screen resolution
  • 100° H and 80° V viewing angles
  • 500 nit brightness
  • 250:1 contrast ratio
  • 4:3 aspect ratio
Camera Features
  • Rear wireless camera with WiSight technology
  • WiSight digital signal transmits through and around objects up to 60 feet away
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Mirror image orientation
  • 380 TV line resolution
  • 0 Lux sensitivity
  • 122° diagonal, 91° horizontal, 65° vertical viewing angles
  • LEDs for low light assistance
  • Microphone
  • Waterproof

WVSXS70

The WVSXS70 single-camera system includes a 7-inch wireless LCD monitor, wireless rear camera, 12-volt accessory plug, suction cup monitor mount, non-corrosive camera mounting bracket, and stainless steel hardware.

WiSight® 2.0 technology digitally locks the camera to the monitor and blocks all outside signals.  This eliminates interference and noise typical of analog wireless systems and delivers a sharp, vivid picture of the vehicle’s surroundings to the monitor.

Monitor (WVSXM70) Features
  • Supports up to four (4) wireless cameras simultaneously
  • Auto-Pairing capability allows the monitor to be paired with any of the wireless cameras with the touch of a button
  • Strong signal transmits through and around objects up to 60 feet away
  • Bright 7” display
  • Supports normal and mirrored camera image
  • Supports single, split, and quad view camera views
  • Built-in speaker
  • Suction cup mount and 12V DC plug included
Camera (WVSXC150) Features
  • 12VDC power
  • High-performance color optics
  • CMOS sensor technology
  • IR LED Low-light assist
  • Waterproof
  • Integrated microphone
  • Wide viewing angle
  • Non-corrosive camera mounting bracket
  • Stainless steel hardware

WVSXP43

The WVSXP43 single-camera system includes a 4.3-inch wireless LCD monitor, one wireless rear camera, a 12-volt power cord, and a suction cup mount.

WiSight® 2.0 technology digitally locks the camera to the monitor and blocks all outside signals.  This eliminates interference and noise typical of analog wireless systems and delivers a sharp, vivid picture of the vehicle’s surroundings to the monitor.

Monitor (WVSXM43) Features
  • Supports up to four (4) wireless cameras simultaneously
  • Auto-Pairing capability allows the monitor to be paired with any of the wireless cameras with the touch of a button
  • Strong signal transmits through and around objects up to 60 feet away
  • Bright 4.3” display
  • Supports normal and mirrored camera image
  • Displays graphic overlay that shows real-time distance from objects
  • Built-in speaker
  • Suction cup mount and 12V DC plug included
Camera (WVSXC150) Features
  • 12VDC power
  • High-performance color optics
  • CMOS Sensor technology
  • IR LED Low-light assist
  • Waterproof
  • Integrated microphone
  • Wide viewing angle

WVSXS43

The WVSXS43 single-camera system includes a 4.3-inch wireless LCD monitor, wireless rear camera, 12-volt accessory plug, suction cup monitor mount, non-corrosive camera mounting bracket, and stainless-steel hardware.

WiSight® 2.0 technology digitally locks the camera to the monitor and blocks all outside signals. This eliminates interference and noise typical of analog wireless systems and delivers a sharp, vivid picture of the vehicle’s surroundings to the monitor.
Monitor (WVSXM43) Features
  • Supports up to four (4) wireless cameras simultaneously
  • Auto-Pairing capability allows the monitor to be paired with any of the wireless cameras with the touch of a button
  • Strong signal transmits through and around objects up to 60 feet away
  • Bright 4.3” display
  • Supports normal and mirrored camera image
  • Displays graphic overlay that shows the real-time distance from objects
  • Built-in speaker
  • Suction cup mount and 12V DC plug included
Camera (WVSXC160) Features
  • 12VDC power
  • High-performance color optics
  • CMOS Sensor technology
  • IR LED Low-light assist
  • Waterproof
  • Integrated microphone
  • Wide viewing angle
  • Non-corrosive camera mounting bracket
  • Stainless steel hardware

DVR8200

  • Mobile digital video recorder
  • 8-channel real time video monitoring and recording
  • Compatible with any Voyager camera
  • Compatible with AHD cameras
  • Continuous recording as well as event recording (Sensor, speed, ignition off)
  • GPS support for map syncing with Google (GPS antenna included)
  • Multitasking function supports live camera monitoring, recording, play, and backing up footage
  • 3 wire power system
  • 2.5” 256GB SATA SSD Device for continuous recording
  • 32GB SD Card for event recording (impact & alarm)
  • SSD device lock key
  • LED diagnostic indicators
  • 3-axis G-sensor
  • IR remote control
  • Backup USB2 .0

VCMS155/B

  • Multi-use camera
  • Available in black (VCMS155B) or white (VCMS155)
  • High performance color optics
  • 1/4-inch CMOS sensor
  • Electronic Automatic iris
  • Selectable mirror or normal image orientation
  • 420 TV line resolution
  • 0 Lux sensitivity
  • 140° diagonal, 112° horizontal, 80° vertical angle of view
  • 10 LEDs for low light assistance
  • Microphone
  • Aluminum housing
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VCMS12FRWD

  • Forward facing camera
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Electronic automatic iris
  • Mirror image orientation
  • 320 TV line resolution
  • 1.0 Lux sensitivity
  • 131° diagonal, 108° horizontal, 78° vertical angle of view
  • Plastic molded housing
  • Waterproof
  • NTSC video signal compatible
  • 12 volt DC power

VCAHD140ICV

  • Surface mount multi-use camera
  • Analog high definition
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Electronic automatic iris
  • Mirror image orientation
  • 1200 TV line resolution
  • 0 Lux sensitivity
  • 146° diagonal, 129° horizontal, 86° vertical angle of view
  • IR low light assistance
  • Impact-resistant aluminum housing
  • Microphone
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VCAHD140LB

  • Surface mount light bar with camera
  • Single pass wire entry installation
  • Automotive exterior lighting-grade polycarbonate
  • FMVSS108 compliant
  • Analog high definition
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Electronic automatic iris
  • Mirror image orientation
  • 1200 TV line resolution
  • 0 Lux sensitivity
  • 146° diagonal, 129° horizontal, 86° vertical angle of view
  • IR low light assistance
  • Impact-resistant aluminum housing
  • Microphone
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VCMS202/B

  • Multi-use camera
  • Available in black (VCMS202B) or white (VCMS202)
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Electronic automatic iris
  • Selectable mirror or normal image orientation
  • 600 TV line resolution
  • 0 Lux sensitivity
  • 145° diagonal, 109° horizontal, 93° vertical angle of view
  • 19 LEDs for low light assistance
  • Aluminum housing
  • Microphone
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VCMS12

  • Side body camera
  • Available in left and right orientations in chrome (VCMS12LCM, VCMS12RCM), gray primer (VCMS12LGP, VCMS12RGP), and white (VCMS12LWT, VCMS12RWT)
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Electronic automatic iris
  • Mirror image orientation
  • 320 TV line resolution
  • 1.0 Lux sensitivity
  • 131° diagonal, 108° horizontal, 78° vertical angle of view
  • Zinc alloy housing and injected plastic body
  • Waterproof
  • NTSC video signal compatible
  • 12 volt DC power

VCMS50

  • Side body camera
  • Available in left and right orientations in chrome (VCMS50LCM, VCMS50RCM), gray primer (VCMS50LGP, VCMS50RGP), and white (VCMS50LWT, VCMS50RWT)
  • Available in variable orientation in black (VCMS50TBLK)
  • High performance color optics
  • 1/4-inch CMOS sensor
  • Electronic automatic iris
  • Normal image orientation
  • 380 TV line resolution
  • .5 Lux sensitivity
  • 78° diagonal, 65° horizontal, 49° vertical angle of view
  • IR low light assistance
  • Aluminum housing and injected plastic body
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VCMS17B

  • Rear mount camera
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Electronic automatic iris
  • Mirrored image orientation
  • 600 TV line resolution
  • 0 Lux sensitivity
  • 125° diagonal, 85° horizontal, 67° vertical angle of view
  • 12 LEDs for IR low light assistance
  • Microphone
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VOM43HD

  • Supports three wired cameras with manual (push button) or automatic (trigger) source selection
  • 4.3-inch color TFT LCD panel display with LED backlight
  • Anti-glare and anti-scratch protective lens
  • Display graphic overlays show distance from objects in real-time
  • On-Screen Display (OSD) for AV source, picture adjustment, and volume control
  • Heavy duty waterproof metal housing
  • Rubber keypad with white backlit illumination
  • Menu-selectable auto power on/off
  • Non-volatile memory
  • AMP mounting pattern
  • Built-in speaker
  • 12 volt DC power
  • NTSC and PAL video signal compatible
  • 480 W x 272 H screen resolution
  • 70° top, 70° bottom, 60° left, 60° right viewing angles
  • 500 nit brightness
  • 500:1 contrast ratio
  • 16:9 aspect ratio

WVOM541AP

  • Supports up to 4 wireless cameras
  • Auto-Pairing button instantly pairs (up to) 4 wireless cameras
  • WiSight digital signal transmits through and around objects up to 60 feet away
  • 5.6-inch color TFT LCD panel display with LED backlight
  • Built-in speaker
  • Suction cup mount and 12 volt DC plug included
  • 12 volt DC power
  • NTSC video signal compatible
  • 960 W x 234 H screen resolution
  • 100° H and 80° V viewing angles
  • 500 nit brightness
  • 250:1 contrast ratio
  • 4:3 aspect ratio

WVSXP70

The WVSXP70 single-camera system includes a 7-inch wireless LCD monitor, wireless rear camera, 12-volt accessory plug, and suction cup monitor mount.

WiSight® 2.0 technology digitally locks the camera to the monitor and blocks all outside signals.  This eliminates interference and noise typical of analog wireless systems and delivers a sharp, vivid picture of the vehicle’s surroundings to the monitor.

Monitor (WVSXM70) Features
  • Supports up to four (4) wireless cameras simultaneously
  • Auto-Pairing capability allows the monitor to be paired with any of the wireless cameras with the touch of a button
  • Strong signal transmits through and around objects up to 60 feet away
  • Bright 7” display
  • Supports normal and mirrored camera image
  • Supports single, split, and quad view camera views
  • Built-in speaker
  • Suction cup mount and 12V DC plug included
Camera (WVSXC160) Features
  • 12VDC power
  • High-performance color optics
  • CMOS Sensor technology
  • IR LED Low-light assist
  • Waterproof
  • Integrated microphone
  • Wide viewing angle

WVRXCAMTC

System includes WiSight receiver (WVRX1AP) and wireless camera (WVCMS130AP).

Receiver Features
  • Universal installation with AMPS mounting provisions
  • WiSight digital signal transmits through and around objects up to 60 feet away
  • Compatible with any Voyager wired monitor for instant WiSight signal capability
  • Adjustable antenna
  • LED power indicator
Camera Features
  • Rear wireless camera with WiSight technology
  • WiSight digital signal transmits through and around objects up to 60 feet away
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Mirror image orientation
  • 380 TV line resolution
  • 0 Lux sensitivity
  • 122° diagonal, 91° horizontal, 65° vertical viewing angles
  • LEDs for low light assistance
  • Microphone
  • Waterproof

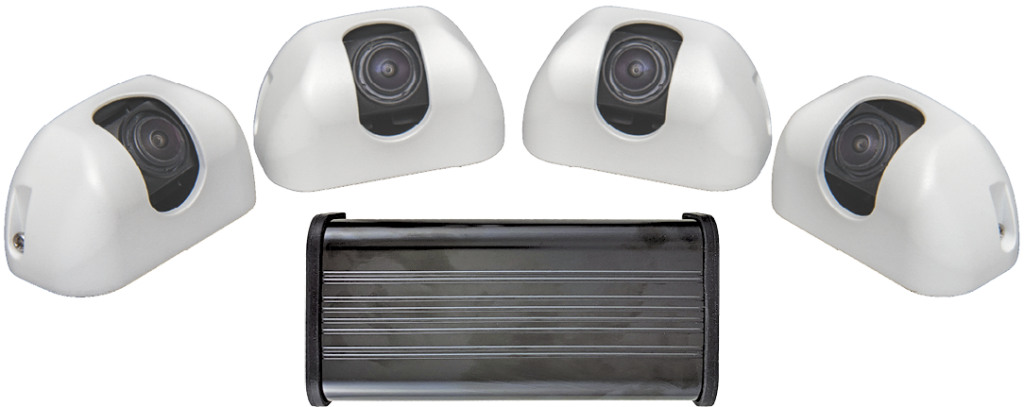

VAVS360A1

  • Auto-calibrate the images from four cameras to create a 360- degree image
  • Supports four vehicle configurations
    • Walk-in Van 354” L x 118” W
    • Bus 551” L x 118” W
    • Heavy Duty Vehicles 236” L x 354” W
    • Semi Trailer 630” L x 118” W
  • Left/Right/Rear trigger function to switch between viewing angles
  • Update software and vehicle image via USB
  • 1/3-inch high performance color optic cameras
  • Waterproof housing
  • Plastic camera housing with stainless steel mounting bracket and aluminum
  • Powder coated camera cover

VOS74MMCL3B

Wired camera system includes one VOM74MM mirror monitor, one VCMS140IB rear camera, one VCMS50RGP right side camera, one VCMS50LGP left side camera, and proprietary cabling.

Monitor Features
  • Supports 3 cameras with manual or triggered source selection
  • Rearview mirror replacement monitor
  • 7-inch wide format color TFT LCD display
  • On-Screen Display (OSD) for AV source, picture adjustment, and volume control
  • Manual and auto-dimming feature with screen saver mode
  • Mechanical buttons with white backlit illumination
  • Non-volatile memory
  • Built-in speaker
  • 12 volt DC power
  • NTSC and PAL video signal compatible
  • 800 W x 450 H screen resolution
  • 70° top, 50° bottom, 70° left, 70° right viewing angles
  • 400 nit brightness
  • 500:1 contrast ratio
  • Analog 16:9 aspect ratio
Rear Camera Features
  • Surface mount multi-use camera
  • High performance color optics
  • 1/4-inch CMOS sensor
  • Electronic automatic iris
  • Mirror image orientation
  • 400 TV line resolution
  • 0 Lux sensitivity
  • 150° diagonal, 120° horizontal, 90° vertical angle of view
  • IR low light assistance
  • Impact-resistant aluminum housing
  • Microphone
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power
Side Camera Features
  • High performance color optics
  • 1/4-inch CMOS sensor
  • Electronic automatic iris
  • Normal image orientation
  • 380 TV line resolution
  • .5 Lux sensitivity
  • 78° diagonal, 65° horizontal, 49° vertical angle of view
  • IR low light assistance
  • Aluminum housing and injected plastic body
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VOS74MMCL2B

Wired camera system includes one VOM74MM mirror monitor, one VCMS140IB rear camera, one VCMS50RGP right side camera, and proprietary cabling.

Monitor Features
  • Supports 3 cameras with manual or triggered source selection
  • Rearview mirror replacement monitor
  • 7-inch wide format color TFT LCD display
  • On-Screen Display (OSD) for AV source, picture adjustment, and volume control
  • Manual and auto-dimming feature with screen saver mode
  • Mechanical buttons with white backlit illumination
  • Non-volatile memory
  • Built-in speaker
  • 12 volt DC power
  • NTSC and PAL video signal compatible
  • 800 W x 450 H screen resolution
  • 70° top, 50° bottom, 70° left, 70° right viewing angles
  • 400 nit brightness
  • 500:1 contrast ratio
  • Analog 16:9 aspect ratio
Rear Camera Features
  • Surface mount multi-use camera
  • High performance color optics
  • 1/4-inch CMOS sensor
  • Electronic automatic iris
  • Mirror image orientation
  • 400 TV line resolution
  • 0 Lux sensitivity
  • 150° diagonal, 120° horizontal, 90° vertical angle of view
  • IR low light assistance
  • Impact-resistant aluminum housing
  • Microphone
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power
Side Camera Features
  • High performance color optics
  • 1/4-inch CMOS sensor
  • Electronic automatic iris
  • Normal image orientation
  • 380 TV line resolution
  • .5 Lux sensitivity
  • 78° diagonal, 65° horizontal, 49° vertical angle of view
  • IR low light assistance
  • Aluminum housing and injected plastic body
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VOS74MMCL1B

Wired camera system includes one VOM74MM mirror monitor, one VCMS140IB rear camera, and proprietary cabling.

Monitor Features
  • Supports 3 cameras with manual or triggered source selection
  • Rearview mirror replacement monitor
  • 7-inch wide format color TFT LCD display
  • On-Screen Display (OSD) for AV source, picture adjustment, and volume control
  • Manual and auto-dimming feature with screen saver mode
  • Mechanical buttons with white backlit illumination
  • Non-volatile memory
  • Built-in speaker
  • 12 volt DC power
  • NTSC and PAL video signal compatible
  • 800 W x 450 H screen resolution
  • 70° top, 50° bottom, 70° left, 70° right viewing angles
  • 400 nit brightness
  • 500:1 contrast ratio
  • Analog 16:9 aspect ratio





Rear Camera Features
  • Surface mount multi-use camera
  • High performance color optics
  • 1/4-inch CMOS sensor
  • Electronic automatic iris
  • Mirror image orientation
  • 400 TV line resolution
  • 0 Lux sensitivity
  • 150° diagonal, 120° horizontal, 90° vertical angle of view
  • IR low light assistance
  • Impact-resistant aluminum housing
  • Microphone
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VOS719WPLD3B

Wired camera system includes one VOM719WP monitor, one VCMS17B rear camera, one VCMS50RGP right side camera, one VCMS50LGP left side camera, one VOSHD4MNT monitor mount, and proprietary cabling.

Monitor Features
  • Supports 4 cameras with 6 triggers including Single image, Split-screen, and QuadView display modes
  • 7-inch digital wide format color TFT LCD display
  • DC auto source for switching triggers (turn signal compatible)
  • Manual day/night display brightness controls
  • Backlit control buttons
  • Heady duty waterproof construction
  • Rated and tested to withstand 4G continuous vibration
  • AMPS mounting provisions
  • Built-in speaker
  • Removable sun visor included
  • 12 volt DC power
  • NTSC and PAL video signal compatible
  • 800 W x 450 H screen resolution
  • 60° top, 70° bottom, 75° left, 75° right viewing angles
  • 500 nit brightness
  • 500:1 contrast ratio
  • 16:9 aspect ratio
Rear Camera Features
  • Rear mount camera
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Electronic automatic iris
  • Mirrored image orientation
  • 600 TV line resolution
  • 0 Lux sensitivity
  • 125° diagonal, 85° horizontal, 67° vertical angle of view
  • 12 LEDs for IR low light assistance
  • Microphone
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power
Side Camera Features
  • High performance color optics
  • 1/4-inch CMOS sensor
  • Electronic automatic iris
  • Normal image orientation
  • 380 TV line resolution
  • .5 Lux sensitivity
  • 78° diagonal, 65° horizontal, 49° vertical angle of view
  • IR low light assistance
  • Aluminum housing and injected plastic body
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VOS719WPLD2B

Wired camera system includes one VOM719WP monitor, one VCMS17B rear camera, one VCMS50RGP right side camera, one VOSHD4MNT monitor mount, and proprietary cabling.

Monitor Features
  • Supports 4 cameras with 6 triggers including Single image, Split-screen, and QuadView display modes
  • 7-inch digital wide format color TFT LCD display
  • DC auto source for switching triggers (turn signal compatible)
  • Manual day/night display brightness controls
  • Backlit control buttons
  • Heady duty waterproof construction
  • Rated and tested to withstand 4G continuous vibration
  • AMPS mounting provisions
  • Built-in speaker
  • Removable sun visor included
  • 12 volt DC power
  • NTSC and PAL video signal compatible
  • 800 W x 450 H screen resolution
  • 60° top, 70° bottom, 75° left, 75° right viewing angles
  • 500 nit brightness
  • 500:1 contrast ratio
  • 16:9 aspect ratio
Rear Camera Features
  • Rear mount camera
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Electronic automatic iris
  • Mirrored image orientation
  • 600 TV line resolution
  • 0 Lux sensitivity
  • 125° diagonal, 85° horizontal, 67° vertical angle of view
  • 12 LEDs for IR low light assistance
  • Microphone
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power
Side Camera Features
  • High performance color optics
  • 1/4-inch CMOS sensor
  • Electronic automatic iris
  • Normal image orientation
  • 380 TV line resolution
  • .5 Lux sensitivity
  • 78° diagonal, 65° horizontal, 49° vertical angle of view
  • IR low light assistance
  • Aluminum housing and injected plastic body
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VOS719WPLD1B

Wired camera system includes one VOM719WP monitor, one VCMS17B rear camera, one VOSHD4MNT monitor mount, and proprietary cabling.

Monitor Features
  • Supports 4 cameras with 6 triggers including Single image, Split-screen, and QuadView display modes
  • 7-inch digital wide format color TFT LCD display
  • DC auto source for switching triggers (turn signal compatible)
  • Manual day/night display brightness controls
  • Backlit control buttons
  • Heady duty waterproof construction
  • Rated and tested to withstand 4G continuous vibration
  • AMPS mounting provisions
  • Built-in speaker
  • Removable sun visor included
  • 12 volt DC power
  • NTSC and PAL video signal compatible
  • 800 W x 450 H screen resolution
  • 60° top, 70° bottom, 75° left, 75° right viewing angles
  • 500 nit brightness
  • 500:1 contrast ratio
  • 16:9 aspect ratio
Rear Camera Features
  • Rear mount camera
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Electronic automatic iris
  • Mirrored image orientation
  • 600 TV line resolution
  • 0 Lux sensitivity
  • 125° diagonal, 85° horizontal, 67° vertical angle of view
  • 12 LEDs for IR low light assistance
  • Microphone
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power
